FUME EXTRACTION AND AIR FILTRATION SOLUTIONS FOR SOLDERING APPLICATIONS

People can become permanently sensitized to solder fumes. As a result continued exposure may cause asthma and other respiratory health issues depending on the amount of exposure. Employees should be protected from these health risks by using the best fume extraction systems available.

Solder Fume Extractor, Soldering Applications, Air Filtration, Air Purifiers

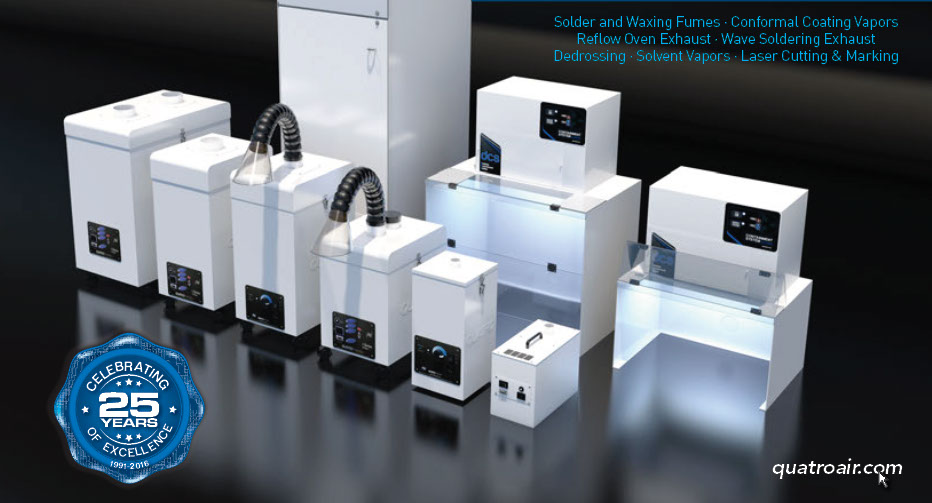

solder and waxing fumes, conformal coating vapors, reflow oven exhaust, wave soldering exhaust, dedrossing, solvent vapors, laser cutting & marking

Why are solder (chemical fumes, odors) fume extractors important

People can become permanently sensitized to solder fumes. As a result continued exposure may cause asthma and other respiratory health issues depending on the amount of exposure. Employees should be protected from these health risks by using the best fume extraction systems available.

Why fume extraction is essential for personnel

Worker safety is critically important in soldering applications. A well-designed and maintained dust and fume collection system is needed to prevent respiratory problems and keep facilities in compliance with current air-quality standards. In some cases, a good dust collection and ventilation system can eliminate the need for personal respirators and the challenge of getting employees to wear them.

Why should companies use fume extraction systems

Many industrial processes such as soldering, laser processing and welding all produce dust and fumes which are hazardous to health and which can also reduce productivity or increase rejected products. Fumes can also damage expensive production equipment and cause extensive downtime for repair and/or cleaning. Many local and international health and safety regulations require the employer to protect personnel from hazardous dust and fumes. Failure to do so can result in expensive compensation claims and fines.

Possible health symptoms due to soldering smoke

 headaches,  fatigue, irritability, constipation, nausea, stomach pains, amnesia, dizzyness, loss of weight



Continued uncontrolled exposure could cause far more serious symptoms such as: kidney damage, nerve and brain damage,  cancer

DCS

Basic

SPH-Mini

SP

SP HC/HD

SPM504

SPH400

SPH400FA

CSA600

SPH800

BP2000

SPH800-20

DCS, desktop containment system, solder fume extractor, filtration system

Solder Fume Extractor, Soldering Applications, Air Filtration, Air Purifiers

ideal for single station filtration of solder fumes

Call toll free, 1-800-626-0664, for help with product selection

The Desktop Containment System (DCS) is ideal for single station filtration of solder fumes or any other kind of fumes, odors, chemical gases

Protects operators from harmful chemicals, vapors and particulates, Illuminated interior provides a clear and bright work environment, Quiet operation, digital control panel with audible and visual alarms, Standard filter sequence: pre-filter, chemical filter and HEPA filter, Custom filter sequences available for custom applications, Adjustable hinged acrylic front door allows for great visibility

  • Air Flow: 510 m³/h / 300 CFM
  • Voltage: 120V or 230V
  • Dimensions: 24"W x 18"D x 29"H / 610mm x 458mm x 737mm (29"W x 20"D x 39"H / 737mm x 508mm x 990mm)
  • Filters: Pleated pre-filter, 30% ASHRAE rated (F071), 2” Medical grade HEPA filter 99.97% (F074), 2“ Chemical filter (F072-GPC)
  • Discharge: Recirculation grille
  • Optional 3" or 4" collars for venting to the exterior
  • Sound Level: 62 dBA at full speed
  • Controls: Remote ON/OFF, communication capabilities, audible and visual alarms
F071 pre-filter Hepa Filter F072-GPC Carbon Filter F072-BPC Carbon Filter

Small foot-print for tight spaces, High speed turbine provides efficient debris removal, Easily disposable Bag Filter, Includes HEPA Filter, Ultra quiet, 51dBA (measured at 6ft), Ideal for 1/2” - 3/4” tubing (with optional H562 adapter)

  • Air Flow: 240 m³/h / 141 CFM
  • Max Pressure: 90" W.C. / 22 kPa
  • Motor(s): 1.1 kW High Speed Turbine, CSA/UL approved
  • Voltage: 120V or 230V
  • Dimensions: 7"W x 16"D x 9.75"H / 178mm x 407mm x 248mm
  • Filter Sequence: HEPA Filler 99.97%, Bag filter, Options: Carbon Filter
  • lnlets: 1,5” Standard; Adapter for 1/2” tubing
  • Discharge: Recirculation grille
  • Sound Level: 56 dBA at full speed
  • Suction hose: 6 feet (2m) of heavy duty hose & clamps
SPH-Mini for solder fume extraction, smoke, chemical odor, fumes removal

Solder Fume Extractor, Soldering Applications, Air Filtration, Air Purifiers

low profile, light duty, solder fume extractor

Left to right:  SPH-Mini, SPH400 (size reference), SPH-Mini with optional AA005 flex capture arm

Low-profile, light duty solder fume extractor, Multiple filter arrangement allows for disposable bag, HEPA cartridge and gas phase filter, Built in whisper quiet features, Custom chemical filters can be incorporated to deal with specific gas phase contaminants, Optional digital control panel

  • Air Flow: 240 m³/h / 141 CFM
  • Max Pressure: 90" W.C. / 22 kPa
  • Motor(s): 1 kW High Speed Turbine, CSA/UL approved
  • Voltage: 120V or 230V
  • Dimensions: 9"W x 9"D x 19"H / 230mm x 230mm x 483mm
  • Filter Sequence: All-in-one disposable card-box filter (AG162) containing: Multi-layered inlet filter pad, HEPA Filler 99.97%, General purpose chemical filter
  • Options: Bag filter; Source capture arms; Digital control panel
  • lnlets: 1,5” Standard; 3” Optional
  • Discharge: Recirculation grille
  • Sound Level: 56 dBA at full speed
  • Suction hose: 6 feet (2m) of heavy duty hose & clamps
AG162 AG140 F180

Ideal for low debris generating applications, Medium pressure motorized brushless impeller, Enhanced mobility with heavy duty lockable casters, Multi-stage filtration system: pre-filter, HEPA and chemical filter, Whisper quiet, operation, Optional digital control panel

  • Air Flow: 510 m³/h / 300 CFM
  • Motor(s): Motorized impellers, backward inclined, non-overloading
  • Voltage: 120V or 230V
  • Dimensions: 13"W x 16"D x 20"H / 330mm x 406mm x 508mm
  • Filter Sequence: 2" Pleated pre-filter, 30% ASHRAE (F071), 2” Medical grade HEPA Filter 99.97% (F074), 2“ Chemical filter (F072-GPC)
  • Optional lnlets: 3”, 4” or dual 3" diameter
  • Discharge: Recirculation grille
  • Sound Level: 54 dBA at full speed
  • Remote Control: Optional
  • Suction hose: 6 feet (2m) of heavy duty hose & clamps
F071 pre-filter F074 - Hepa Filter, medical, hospital grade F075 - Hepa Filter F072-GPC Activated Carbon Filter, refillable canister 4" Carbon filter (F077-GPC)

Ideal for low debris generating applications, Medium pressure motorized brushless impeller, Enhanced mobility with lockable casters, Multi-stage filtration system, Whisper quiet operation, Optional digital control panel

  • Air Flow: 510 m³/h / 300 CFM
  • Motor(s): Motorized impellers, backward inclined
  • Voltage: 120V or 230V
  • Dimensions: 13"W x 16"D x 20"H / 330mm x 406mm x 508mm
  • Filtration: High capacity pleated pre-filter, 30% ASHRAE, Medical grade HEPA Filter 99.97%, Chemical filter
  • Optional lnlets: 3” or 4" diameter
  • Discharge: Recirculation grille
  • Sound Level: 54 dBA at full speed
  • Remote Control: Optional
  • Suction hose: 6 feet (2m) of heavy duty hose & clamps
F071 pre-filter F074 - Hepa Filter, medical, hospital grade F075 - Hepa Filter F072-GPC Activated Carbon Filter, refillable canister 4" Carbon filter (F077-GPC)

Solder Fume Extractor, Soldering Applications, Air Filtration, Air Purifiers

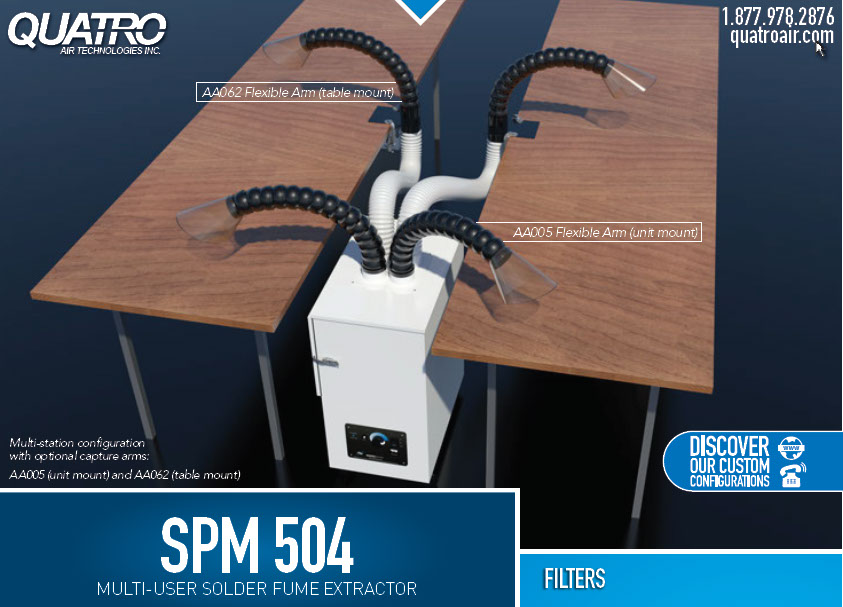

Multi-station, multi-user configuration
with optional capture arms

Ideal for up to 4 workstations, Medium pressure motorized brushless impeller, Enhanced mobility with heavy duty lockable casters, Multi-stage filtration system: pre-filter, HEPA and chemical filter, Whisper quiet operation,  Optional digital control panel

  • Air Flow: 1100 m³/h / 475 CFM
  • Motor/fan: Backward inclined, non-overloading, brushless
  • Voltage: 120V or 230V
  • Dimensions: 15"W x 23"D x 30"H / 381mm x 585mm x 762mm
  • Filter Sequence: Pleated pre-filter, 30% ASHRAE (F265), Medical grade HEPA Filter 99.97% (F057), Chemical filter (F033-GPC)
  • Optional lnlets: 2x3”, 3x3” or 4x3"
  • Discharge: Recirculation grille; optional silencer (H250]
  • Sound Level: 62 dBA at full speed
  • Remote Control: Optional
  • Suction hose: 6 feet (2m) of heavy duty hose & clamps

Our most popular model for heavy and medium duty applications, Multi-stage filtration system: pre-filter, HEPA and chemical filter, LaserBlue gel seal guarantees ZERO FILTER BYPASS, Dual high speed turbine for high suction, pressure and airflow, Enhanced mobility with heavy duty lockable casters, Whisper quiet operation, Digital control panel, Also available: brushless units and custom filter configurations

  • Air Flow: 0-482 m³/h / 0-280 CFM
  • Max Pressure: 90” W.C. / 22 kPa
  • Motor(s): 2 X 1.0 kW High Speed Turbine
  • Voltage: 120V or 230V
  • Dimensions: 12"W x 15"D x 24"H / 304mm x 381mm x 762mm
  • Filter Sequence: Multi layered knock-out pad (F166-125), Pleated pre-filter, 30% ASHRAE rated (F071), 2” Medical grade HEPA filter 99.97% (F074), 8“ Chemical filter (AG097)
  • Optional lnlets: 2”, 3”, 4", dual 3”, or dual 2”
  • Discharge: Recirculation grille (standard) or optional 3" or 4" side collars
  • Sound Level: 62 dBA at full speed
  • Controls: Remote ON/OFF, communication capabilities, audible and visual alarms
  • Suction hose: 6 feet (2m) of heavy duty hose & clamps
Pre-filter Foam Pad Pre-filter Designed for workstations with multiple soldering stations Medical Grade Hepa Filter Refillable Canister- economize in carbon replacement

Solder Fume Extractor, Soldering Applications, Air Filtration, Air Purifiers

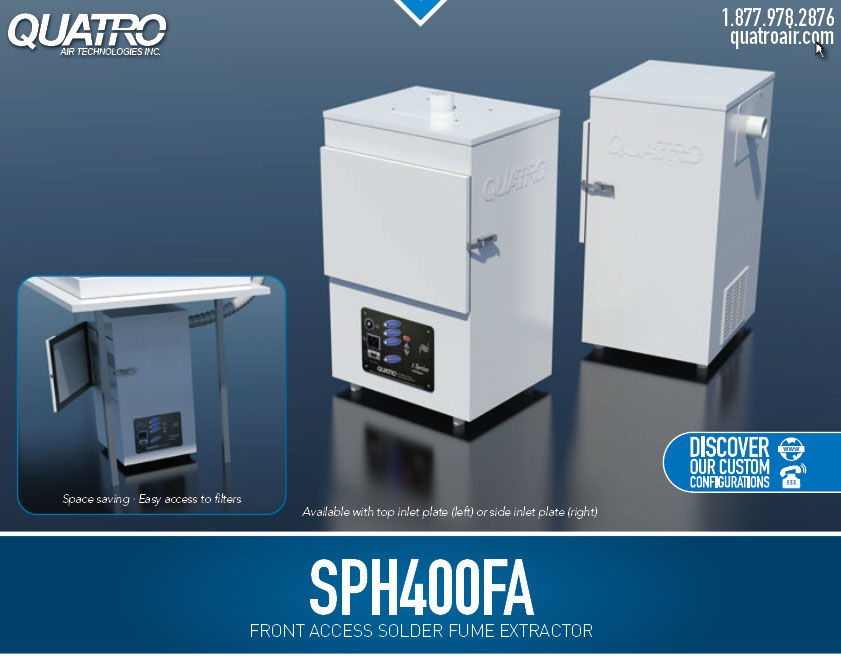

Front Access Solder Fume Extractor

Space saving, easy access to filters

Available with top inlet plate or side inlet plate

Front door access for simplified filter maintenance, Designed for heavy and medium duty applications, Multi-stage filtration system: pre-filter, HEPA and chemical filter, LaserBlue gel seal guarantees ZERO FILTER BYPASS, Dual high speed turbine for high suction, pressure and airflow, Whisper quiet operation, Also available: brushless units and custom filter configurations

  • Air Flow: 0-482 m³/h / 0-280 CFM
  • Max Pressure: 90” W.C. / 22 kPa
  • Motor(s): 2 X 1.0 kW High Speed Turbine
  • Voltage: 120V or 230V
  • Dimensions: 12"W x 15"D x 24"H / 304mm x 381mm x 762mm
  • Filter Sequence: Pleated pre-filter, 30% ASHRAE rated (F071), 2” Medical grade HEPA filter 99.97% (F074),
    8“ Chemical filter, 40 lbs / 18kg (AG097)
  • Optional lnlets: 2”, 3”, 4", dual 3”, or dual 2”
  • Discharge: Recirculation grille
  • Optional 3" or 4" side collars for venting to the exterior
  • Sound Level: 62 dBA at full speed
  • Controls: Remote ON/OFF, communication capabilities, audible and visual alarms
  • Suction hose: 6 feet (2m) of heavy duty hose & clamps
Pre-filter Foam Pad Pre-filter Designed for workstations with multiple soldering stations Medical Grade Hepa Filter Refillable Canister- economize in carbon replacement

Dual high speed turbine for high suction, pressure and airflow, Refillable, 15” deep chemical filter module, up to 66, lbs. (30kg), Multi-stage filtration system: filter bag (or high capacity, pleated filter), medical grade HEPA and, chemical filter, LaserBlue gel seal guarantees ZERO FILTER BYPASS, Office friendly, whisper quiet operation,  Digital control panel, Enhanced mobility with heavy duty lockable casters

  • Air Flow: 0-480 m³/h / 0-282 CFM
  • Max Pressure: 90" W.C. / 22 kPa
  • Motor(s): 2 X 1.0 kW High Speed Turbine
  • Voltage: 120V or 230V
  • Dimensions: 13"W x 21"D x 45"H / 330mm x 533mm x 1143mm
  • Filter Sequence: Antimicrobial high capacity bag filter (F128), 6" Pleated filter, 60% ASHRAE rated (F071), 2” Medical grade HEPA Filter 99.97% (F075), 15“ Chemical filter (AG111)
  • Optional lnlets: 1.5”, 2”, 3” or 4" diameter
  • Discharge: Recirculation grille (standard) or optional 3" or 4" side collars
  • Sound Level: 52 dBA at full speed
  • Controls: Remote ON/OFF, communication capabilities, audible and visual alarms
  • Suction hose: 6 feet (2m) of heavy duty hose and clamps
The CSA is the workhorse fume extractor of the laser industry; designed to operate in a heavy duty environment. The CSA is the workhorse fume extractor of the laser industry; designed to operate in a heavy duty environment. A huge chemical bed of 66Lb. (30kg) provides significant odor and VOC protection for much longer than the light duty units A huge chemical bed of 66Lb. (30kg) provides significant odor and VOC protection for much longer than the light duty units

Cost-effective high pressure system, LaserBlue gel seal guarantees ZERO FILTER BYPASS, Whisper quiet operation,  Enhanced mobility with heavy duty lockable casters, Powered by 3 high-speed turbines (CSA/UL approved), Digital, control panel, Up to 100 lbs. (45 kg) of chemical filtration media, Also available: brushless units and custom filter, configurations

  • Air Flow: 0- 610 m³/h / 0-360 CFM
  • Max Pressure: 90" W.C. / 22 kPa
  • Motor(s): 3 X 1.0 kW High Speed Turbine, UL & CSA Listed
  • Voltage: 230V
  • Dimensions: 16"W x 25"D x 30"H / 406mm x 635mm x 760mm
  • Filter Sequence: Multi layered knock-out pad (1 / inlet) (F166-125), 2 x Pleated pre-filter, 30% ASHRAE rated (F071), 2 x 2” Medical grade HEPA filter 99.97% (F074), 2 x 8“ Chemical filter (AG097)
  • Optional lnlets: 1.5”, 2”, 2.5“, 3”, 4", or dual inlets
  • Discharge: Recirculation grille (standard) or optional 3" or 4" side collars
  • Sound Level: 54 dBA at full speed
  • Controls: Remote ON/OFF, communication capabilities, audible and visual alarms
  • Suction hose: 6 feet (2m) of heavy duty hose and clamps
Pre-filter Foam Pad Pre-filter Designed for workstations with multiple soldering stations Medical Grade Hepa Filter Refillable Canister- economize in carbon replacement Designed to fit into an application where direct capture from the source is possible LaserBlue Gel seal guarantees NO BYPASS

Designed for high volume applications (or multi-station), Front door access to filters and the motor blower, Multi-stage filtration system: pre-filter, HEPA and chemical filter, Custom filter configurations available, High quality,  blower motors with very high volumetric flow rate, Whisper quiet operation, Digital control panel

  • Air Flow: Nominal 1700 m³/h / 1000 CFM
  • Voltage: 120V or 230V
  • Dimensions: 24"W x 26"D x 71"H / 610mm x 660mm x 1800mm
  • Filtration: Pre-filters, Medical grade HEPA filters 99.97%, Chemical filter, up to 200 lbs / 90kg
  • lnlets: 6“ standard. Optional: 2”, 3” or 4" diameter
  • Discharge: Recirculation grille
  • Optional 10" or 12" discharge collars for venting to the exterior
  • Sound Level: 54 dBA at full speed
  • Controls: Remote ON/OFF, communication capabilities, audible and visual alarms
  • Suction hose: 12 feet (3.6m) of flexible hose & clamps
5 stage, multi-stage filtration system, dust to heavy chemical odor control

** Please note: Specifications / Prices Subject To Change Without Prior Notice **
